Name: SMT Led Pick And Place Machine, 6 Heads Max Pick And Place Machine: 1200*300mm
Brand: SMT Led Pick And Place Machine, 6 Heads Max Pick And Place Machine: 1200*300mm
SKU: SUNY-AS619
Price: 1 USD
Availability: InStock
Rating: 4.7 (187 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Showroom Location: United States

Model Number: SUNY-AS619

Warranty: 1 Year

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: United States

After-sales Service Provided: Video technical support, Online support

Board size: Maxi:1200*300mm,Mini:30*30mm

Pick and place speed: 48000CPH

Board thickness: 0.3-4.0mm

Head: 8 heads

Información básica

Model Number: SUNY-AS619

Pago y Envío Términos

Packaging Details: Wooden cases.

Supply Ability: 100 Set/Sets per Month

Descripción de producto

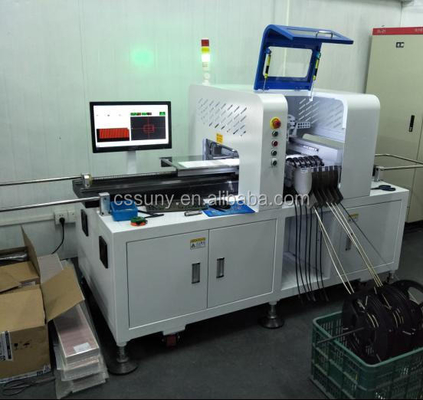

Item:SMT led pick and place machine, 6 heads pick and place machine

Model:SUNY-AS619

Specification:

No	Spec		Technical
Board Parameter	Board size	Maximum	(L)1200 x (W)300mm
	Board size	Minimum	(L)30 x (W)30mm
	Location method	Left/down side fix base,right/upside movable fix base
	Transfer direction	Right→left
Mounting Parameter	Speed	Maximum speed	48,000 CPH
	Speed	Average speed	30,000~36,000 CPH
	Distance between components		26mm (maximum speed)
	Mounting height		8.5mm
	Mounting Precision	CHIP-LED	±0.03mm
	Components Type		Resistance(0402-1206), capacitance,IC,Diode,LED lamp
	Recognition System		Camera+SMD location and inspection system
	Head		6 heads
	Feeder number		12x 8mm/12mm/16mm
System Parameter	Operation system		Industrial-grade computer
	Operation software		SUNY SOFTWARE
	X axis control		Panasonic AC servo motor
	Y axis control		Panasonic AC servo motor
	Z axis control		Panasonic AC servo motor
	θ control		SAMSR motor
Production Parameter	Power		AC220 V
	Rated Power		700W
	Air pressure		≥0.5 Mpa
	Dimension		(L)2000 x (W)1000 x (H)1140 mm
	Weight		700KG
