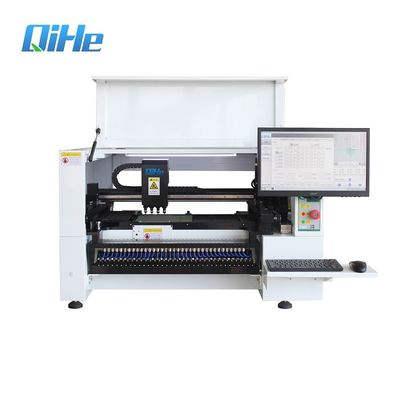

0402 TVM926 Qihe Desktop Automatic PCB Assembly SMT Pick And Place Machine With Vision

1 Set
MOQ
$6,999.00(>=1 Sets)
Precio
0402 TVM926 Qihe Desktop Automatic PCB Assembly SMT Pick And Place Machine With Vision
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Motor
Model Number: TVM926
Warranty: 1 Year, 1 Year
Name: Place Machine\LED Mounter\led Assembly Machine
Applicable Components: 0402,5050,SOP,TQFP,QFN
Feeder capability: 64pcs
Max applicable PCB: 330*580mm
Usage: LED Tube Large Qty Production
Power Supply: 220V/110V
Nozzle type: JUKI 503,504,505,506
Mounting speed: 9000CPH
Certifications: CE
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
After-sales Service Provided: Video technical support, Free spare parts, Online support
Información básica
Certificación: CE
Model Number: TVM926
Pago y Envío Términos
Packaging Details: export package: crate with foam inside
Supply Ability: 300 Set/Sets per Year
Descripción de producto

Desktop  Automatic PCB Assembly SMT  Pick and Place Machine TVM926 Qihe With Vision

QIHE TVM926 is a high speed pick and place machine for medium production line.

Up to 64 feeder slots, it can mount many kinds of component.

Multi-Vision System: Total six cameras make placement more accurate.

Time saving by the four nozzles are examined over the four cameras at the same time.

It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Specification
Model TVM926
Max applicable PCB size 330*580mm
Max xy moving range 585*620mm
Max z moving range 16mm
Placementhead quantity 4
Max mounting capability Vision on: 9000pcs/h
Vision off: 7000pcs/h
Feeder Capacity 64 (YAMAHA Feeder is available)
Applicable component  Smallest size: 0402
Largest size: 16*16mm (Pitch 0.5mm)
Max height: 5mm
Visual camera 5CCD cameras & 1 HD CCD camera
Power supply 220V/110V
Net weight 160kg
Machine Dimension 1060*865*650mm
Packing size 0.98CBM







Main Features

1. Vision system: one down-looking camera. Four CCD cameras and one HD camera.

2. Four placement heads can pick up and calibrate components at one time.

3. Up to 64 feeder slots, Yamaha standard feeder is available.

4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.

5. Video tutorials make you operate machine easily

6. Free to upgrade software and provide technology support for life.







Production Line Recommend



Company Show





Exhibition Show





Certificate







FAQ

1. Q: How many nozzles do you supply?

A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles.

2. Q: Which language is the software? Do you provide software updates?

A: English or Chinese. Free to upgrade software for lifetime.

3. Q: This is the first time I use this kind of machine, is it easy to operate?

A: Yes. There are English manual and guide video that show you how to use machine.

If there is any doubt in the process of operating the machine, please feel free contact us.

We also provide overseas on-site service.

4. Q: Can we customize the machine?
A: Of course. All of our machines can be customized.

5. How about the warranty?

A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
