Inicio /Productos/Componentes electrónicos SMT/FR-4 Shenzhen Light Circuit Control Board Electronics Solar PCB SMT Customized PCBA Assembly Factory

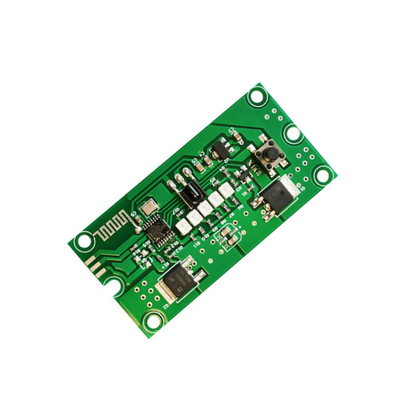

FR-4 Shenzhen Light Circuit Control Board Electronics Solar PCB SMT Customized PCBA Assembly Factory

10.0 Pieces
MOQ
FR-4 Shenzhen Light Circuit Control Board Electronics Solar PCB SMT Customized PCBA Assembly Factory
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: CMY-00199
Base Material: FR-4
Copper Thickness: 1oz
Board Thickness: 1.6mm
Min. Hole Size: 0.20mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm
Surface Finishing: HASL Lead Free
Product name: Printed Circuit Board
Service: One-Stop OEM Service
Certificate: IATF16949/ISO13485/ISO9001/ISO14001
Material: FR4 /Aluminum/CEM3/CEM1/FR1
Testing Service: 100% Electrical Test/Function Testing
Solder mask color: Green Blue Black White Red
Size: 165*114.5*76mm
Warranty: 1 Year
PCBA service: One Stop Turnkey PCBA Service
PCB Standard: IPC-A-600
Información básica
Certificación: IATF16949/ISO13485/ISO9001/ISO14001
Model Number: CMY-00199
Pago y Envío Términos
Packaging Details: Anti-Static bag
Supply Ability: 100000 Box/Boxes per Day
Descripción de producto
Product Paramenters
Item
Paramter
Board Type:
Rigid PCB, Flexible PCB, metal core PCB,Rigid-Flex PCB
Board Shape:
Rectangular, Circular and any Odd Shapes
Size:
50*50mm~400mm * 1200mm
Min Package:
01005 (0.4mm*0.2mm),0201
Fine Pitch Parts:
0.25mm
BGA Package:
Dia. 0.14mm, BGA 0.2mm pitch
Mounting Accuracy:
±0.035mm(±0.025mm) Cpk≥1.0 (3σ)
SMT Capacity:
3 Million~4 Million Soldering Pad/day
DIP Capacity:
100 Thousand Pins/day
Assembly Capacity
100 Thousand Pins/day
Parts Sourcing:
All components sourced by Cmy, Partial sourcing, Kitted/Consigned
Parts Package:
Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk
Testing:
Visual inspection; AOI ; X-RAY ; Functional Testing,ICT
Types of Solder:
lead-free (RoHS Compliant) assembly services
Assembly Option:
From SMT to Assy,conformal coating ,Press fit
Stencils:
Laser cut stainless steel stencils，Nano stencil ,FG stencil
File Formats:
Bill of Materials，PCB(Gerber Files)，Pick-N-Place File (XYRS)
Quality Grade:
 IPC-A-610,IPC-A-600
