SMT Production Line/PCB Assembly Line Economic Low Cost Transfer Machine SMD SMT Production Line With LED Transfer Machine 24/44 NeoDen 3V Drivers

1 Set
MOQ
$4,999.00(>=1 Sets)
Precio
SMT Production Line/PCB Assembly Line Economic Low Cost Transfer Machine SMD SMT Production Line With LED Transfer Machine 24/44 NeoDen 3V Drivers
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Weight (KG): 85
Showroom Location: Turkey, United Kingdom, United States, Italy, Germany, Viet Nam, Brazil, India, Russia, Spain, Argentina, Chile, Colombia, South Africa, Ukraine, Australia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Gear, Pump
Model Number: NeoDen 3V Advanced
Warranty: 1 Year
Number of Heads: 2
Placement Rate: 5000CPH(without vision);3500CPH(with vision)
Tape width: 8mm,12mm,16mm
Smallest Component: 0402
Largest Component: TQFP144
Placement Accuracy: ±0.02mm
Applicable PCB area: 320*390mm
Item: Low Cost Pick and Place Machine LED Pick and Place Machine
Application: SMT Production Line/PCB Assembly Line
Información básica
Model Number: NeoDen 3V Advanced
Pago y Envío Términos
Packaging Details: Fumigation free wooden case Economic Low Cost Pick and Place Machine SMD SMT Production Line with LED Pick and Place Machine 24/44 Feeders NeoDen 3V
Supply Ability: 200 Set/Sets per Month Low Cost Pick and Place Machine LED Pick and Place Machine
Descripción de producto
Economic Low Cost Pick and Place Machine SMD SMT Production Line with LED Pick and Place Machine 24/44 Feeders NeoDen 3V
Product Description

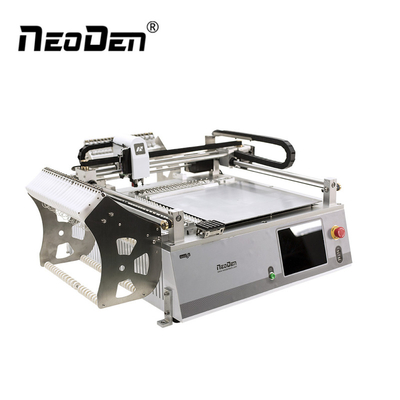

NeoDen3V is an upgraded version of TM245P series.
pick and place smt machine pick n place machine pcb pick and place machine smt placement machine
It features with dual head, 44(advanced)/24(standard) feeder slots, vision system and flexible positioning system,which is suitable for prototyping, small-medium batch production with stable performance and affordable price.
cheap pick and place machine low cost smt pick and place machine smt pick and place equipment
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
used smt pick and place machine pick and place robot pnp machine small smt pick and place machine smd mounting machine smt placement equipment table top pick and place machine smt assembly equipment smd assembly machine

Main Features


Specification
Model
NeoDen3V(Standard)
NeoDen3V(Advanced)
Number Of Heads
2
2
Alignment
Vision
Vision
Rotation
±180°
±180°
Placement Rate
5000CPH(without vision)；
3500CPH(with vision)
5000CPH(without vision);
3500CPH(with vision)
Feeder Capacity
Tape feeder:24(all 8mm)
Tape feeder:44(all 8mm)
Vibration feeder: 0~5
Vibration feeder: 0~5
Tray feeder: 5~10
(Customization supported)
Tray feeder: 5~10
(Customization supported)
Board Dimension
Maximum:320*420mm
Maximum:320*390mm
Component Range
Smallest components:0402
Smallest components:0402
Largest components:TQFP144
Largest components:TQFP144
Max height:5mm
Max height:5mm
Numbers Of Pumps
3
3
Placement Accuracy
±0.02mm
±0.02mm
Operate System
WindowsXP-NOVA
WindowsXP-NOVA
Power
160~200W
160~200W
Electricity Supply
110V/220V
110V/220V
Machine Size
820(L)*650(W)*410(H)mm
820(L)*680(W)*410(H)mm
Packing Size
101(L)*79(W)*58(H)cm
101(L)*96(W)*58(H)cm
Net Weight
55kg
60kg
Gross Weight
80Kg
85kg


Accessories

1)Pick and Place Machine NeoDen3V: 1
2)PCB support bar: 4units
3)PCB support pin: 8units
4)Electromagnet: 1pack
5)Needle: 2sets
6)Allen wren set: 1
7)Tool box: 1unit
8)Cleaning needle: 3units
9)Power cord: 1unit
10)Double side adhesive tape: 1set
11) Silicon tube: 0.5m
12)Fuse(1A): 2units
13)8G flash drive: 1unit
14)Reel holder stand:1set
15)Nozzle rubber 0.3mm: 5units
16)Nozzle rubber 1.0mm: 5units
17)Vibration feeder: 1unit

Nozzle Information

SMT Line
Placement Effect
Related Products
Manual Solder Printer FP2636

SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen9
Our Service

Trade show and sales service

We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.

After sales service

10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop

Exhibition

Certification

Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.

Q2:Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.

Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.

Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.

Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
