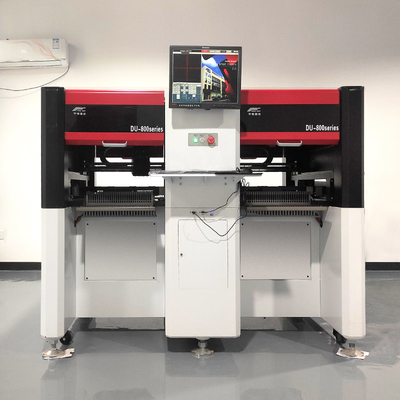

HWGC HW-DSQ800-120F led assembly line and machine mounter Germany smt pick place machine Fuji smt transfer machine HWGC

1 Set
MOQ
$27,000.00(>=1 sets)
Precio
HWGC HW-DSQ800-120F led assembly line and machine mounter Germany smt pick place machine Fuji smt transfer machine HWGC
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Motor
Model Number: HWGC
Warranty: 1 Year
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
Información básica
Model Number: HWGC
Pago y Envío Términos
Descripción de producto







Model HW-DSQ800-120F
Number of Placement Heads 8(high-accuracy)
Number of IC Trays 96
Number of Feeders 120(subject to 8mm feeder)
Positioning Accuracy 0.01mm
Max mounting capability Vision on: 20000pcs/h
Vision off: 26000pcs/h
Repeated Mounting Accuracy 0.02mm
Applicable component  Smallest size: 0201
Largest size: 22*22mm
Max height: 10mm
Visual camera 8CCD cameras & 1 HD CCD camera & 1MARK camera
Power supply 220V 50/60HZ
Net weight 1100kg
Gross Weight 1150kg
Machine Dimension 1740*1360*1440mm




FAQ



Q: How is the training?

A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

Q:Is it hard to use these machines?

A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?

A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.

Q:The Warranty of the machine?

A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.

Q:English version for these machines?

A: Yes, and we will reqularly update the software for customers.
